Geely Remote Star H8E EV refrigerated truck
(0 reviews)Variations
-
- Color Selection:
- Customized Available
-
- Customized Size: Available
Product Actions
Geely Remote Star H8E (89.12kW.h) pure electric refrigerated truck
Overall dimensions of the vehicle: 5995x2260x3265
Inner dimensions of the compartment: 4000 x2100x2100
Total mass 4495Kg,
Curb mass 3250Kg,
Rated load: 1050Kg,
Wheelbase: 3360
Power battery: CATL (water-cooled), lithium iron phosphate battery, power 89.12kwh.
Cruising range: 200-240 kilometers (actual cruising range)
Drive motor: permanent magnet synchronous motor, Hande electric drive axle (maintenance-free) rated power 65kw, maximum power 120kw.
Front and rear steel plates: 2/2+1
Front and rear axles: 2.4T/4T (core load 5T)
Tires: 7.00R16 vacuum tires
Driving brakes: hydraulic brakes, front drums and rear drums.

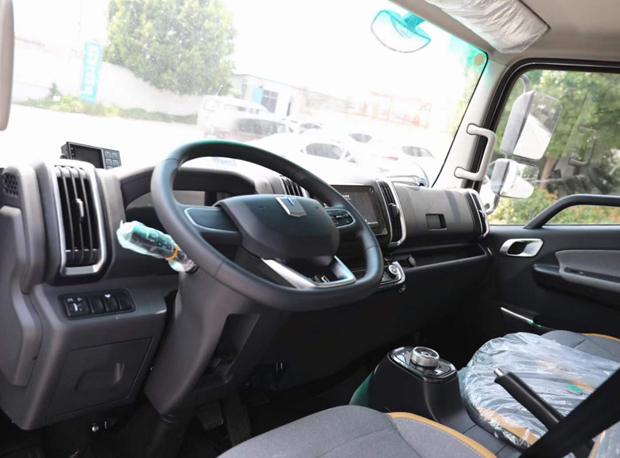

Configuration: wide-body single-row cab, 7-inch LCD instrument panel, 8-inch multimedia screen, reversing radar, reversing image, electric air conditioning, electric doors and windows, daytime running lights, car networking, BCM functions (automatic locking, interior lighting delay function, interior lighting automatic shutdown function, door anti-theft alarm), ABS, T-BXO.
Refrigeration system: integrated split refrigeration machine, Xinkaili 500E Kaixue KX-400E Songzhi SE-400 (auxiliary 18 degrees), Class F, body material/core material extruded board
Warranty service; three-electric (battery, motor, electronic control)
Warranty period: six years, 300,000 kilometers.
Features
Geely Remote Star H8E (89.12kW.h) pure electric refrigerated truck
Overall dimensions of the vehicle: 5995x2260x3265
Inner dimensions of the compartment: 4000 x2100x2100
Total mass 4495Kg,
Curb mass 3250Kg,
Rated load: 1050Kg,
Wheelbase: 3360
Power battery: CATL (water-cooled), lithium iron phosphate battery, power 89.12kwh.
Cruising range: 200-240 kilometers (actual cruising range)
Drive motor: permanent magnet synchronous motor, Hande electric drive axle (maintenance-free) rated power 65kw, maximum power 120kw.
Front and rear steel plates: 2/2+1
Front and rear axles: 2.4T/4T (core load 5T)
Tires: 7.00R16 vacuum tires
Driving brakes: hydraulic brakes, front drums and rear drums.
Configuration: wide-body single-row cab, 7-inch LCD instrument panel, 8-inch multimedia screen, reversing radar, reversing image, electric air conditioning, electric doors and windows, daytime running lights, car networking, BCM functions (automatic locking, interior lighting delay function, interior lighting automatic shutdown function, door anti-theft alarm), ABS, T-BXO.
Refrigeration system: integrated split refrigeration machine, Xinkaili 500E Kaixue KX-400E Songzhi SE-400 (auxiliary 18 degrees), Class F, body material/core material extruded board
Warranty service; three-electric (battery, motor, electronic control)
Warranty period: six years, 300,000 kilometers.
Technical & Performance
- High strength aluminum alloy with edge wrapping, new package edge aluminum alloy tensile strength from 205Mpa to 265Mpa, degree of extension is increased from 170Mpa to 235Mpa.
- Special design of cross-section of the profile makes it is easy to connect with the sub-frame.
- Overall strength of the subframe can be improved by connection.
- Outer profile structure is improved, no rivets appearance, and beautify the truck.
