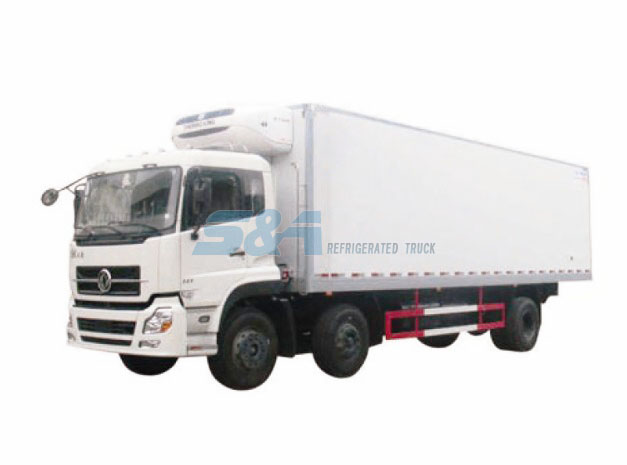

DongFeng TL 49.1 cubic meters refrigerated truck
(0 reviews)
SKU:N1232913643
Lead Time: 30Days
3C certification, ISO9001:2000 certification, GJB9001A-2001 quality certification, Warranty: 1Year
Operating Manual In English:
Available
Variations
-
- Color Selection:
- Customized Available
-
- Customized Size: Available
Product Actions
Product Name: DongFeng TL 49.1 cubic meters refrigerated truck
Chassis Model: DongFeng DFL1253AX1B
Engine Model: ISDE245 40/245 horsepower
External dimensions (mm): 11950 * 2540 * 3890
Internal dimensions (mm): 9255 * 2310 * 2300
Unit volume (m³): 49.1
Load capacity (kg): 12870/12805
Total mass (kg): 25000
Wheelbase (mm): 1950 + 5350/1850 + 5450/2050 + 5250
Features
Product Name: DongFeng TL 49.1 cubic meters refrigerated truck
Chassis Model: DongFeng DFL1253AX1B
Engine Model: ISDE245 40/245 horsepower
External dimensions (mm): 11950 * 2540 * 3890
Internal dimensions (mm): 9255 * 2310 * 2300
Unit volume (m³): 49.1
Load capacity (kg): 12870/12805
Total mass (kg): 25000
Wheelbase (mm): 1950 + 5350/1850 + 5450/2050 + 5250
Technical & Performance
- High strength aluminum alloy with edge wrapping, new package edge aluminum alloy tensile strength from 205Mpa to 265Mpa, degree of extension is increased from 170Mpa to 235Mpa.
- Special design of cross-section of the profile makes it is easy to connect with the sub-frame.
- Overall strength of the subframe can be improved by connection.
- Outer profile structure is improved, no rivets appearance, and beautify the truck.
