8.7-8.8 cubic meters MAXUS small refrigerated truck
(0 reviews)
SKU:N12329154021
Lead Time: 30Days
3C certification, ISO9001:2000 certification, GJB9001A-2001 quality certification, Warranty: 1Year
Operating Manual In English:
Available
Variations
-
- Color Selection:
- Customized Available
-
- Customized Size: Available
Product Actions

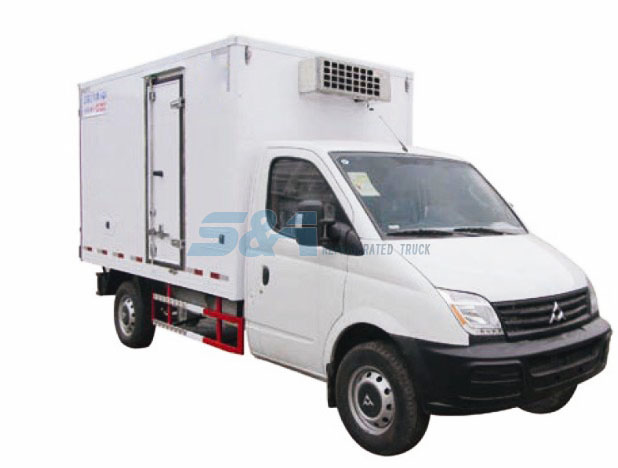

Product Name: 8.7-8.8 cubic meters MAXUS small refrigerated truck
Chassis Model: SH1041A7D4-P1
Engine Model: SC25R136.1Q4 / 136 horsepower
External dimensions (mm): 5995/5245 * 2130 * 2400/2900
Internal dimensions (mm): 3300/2550 * 1900 * 1400/1800
Unit volume (m³): 8.7 / 8.8
Load capacity (kg): 980/1045/1110
Total mass (kg): 3800
Wheelbase (mm): 3850/3100
Features
Product Name: 8.7-8.8 cubic meters MAXUS small refrigerated truck
Chassis Model: SH1041A7D4-P1
Engine Model: SC25R136.1Q4 / 136 horsepower
External dimensions (mm): 5995/5245 * 2130 * 2400/2900
Internal dimensions (mm): 3300/2550 * 1900 * 1400/1800
Unit volume (m³): 8.7 / 8.8
Load capacity (kg): 980/1045/1110
Total mass (kg): 3800
Wheelbase (mm): 3850/3100
Technical & Performance
- High strength aluminum alloy with edge wrapping, new package edge aluminum alloy tensile strength from 205Mpa to 265Mpa, degree of extension is increased from 170Mpa to 235Mpa.
- Special design of cross-section of the profile makes it is easy to connect with the sub-frame.
- Overall strength of the subframe can be improved by connection.
- Outer profile structure is improved, no rivets appearance, and beautify the truck.
