• High strength aluminum alloy with edge wrapping, new package edge aluminum alloy tensile strength from 205Mpa to 265Mpa,  degree of extension is increased from 170Mpa to 235Mpa.

    Special design of cross-section of the profile makes it is easy to connect with the sub-frame.

    Overall strength of the subframe can be improved by connection.

    Outer profile structure is improved, no rivets appearance, and beautify the truck.

    ------------------------



    Special aluminum alloy profiles connect with angle steel.

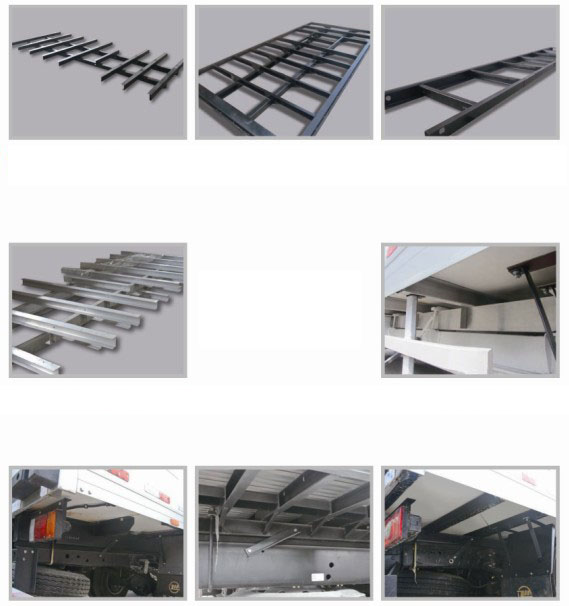

    Sub-frame assembly connects the bolt completely to reduce the deformation and stress concentration phenomenon.

    Change the traditional container installation process, through the surrounding high-strength aluminum alloy makes truck and  sub-car into one.

    Strengthen the back door frame to reduce the impact of deformation during moving cargo.

    Add a horizontal profile to the door sub-frame, connect door frame, sub-frame and floor together through the bolt.

    Compared to ordinary refrigerated trucks, new  lightweight refrigerated trucks achieve 15% weight reduction, and insulation  performance increased by 8% -10%.

    ---------------

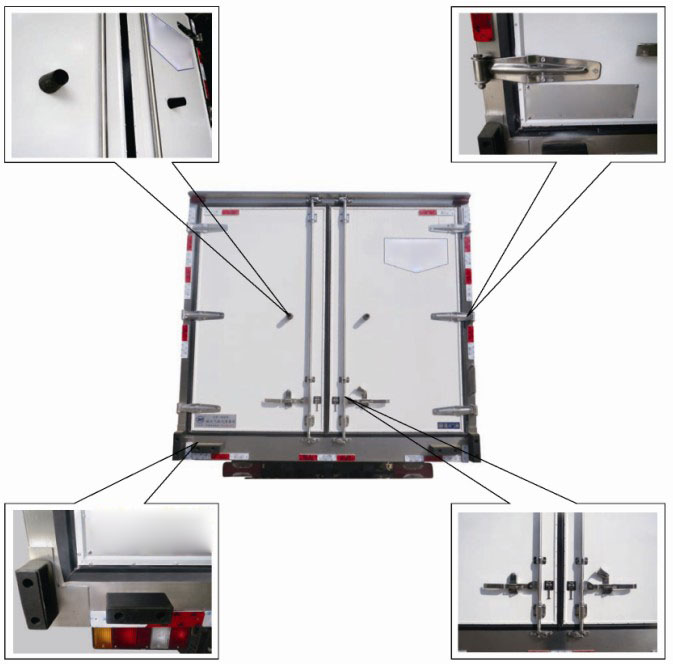

    1, anti-collision point design
    2, stainless steel door hinge
    3, stainless steel open device
    4, high quality chassis

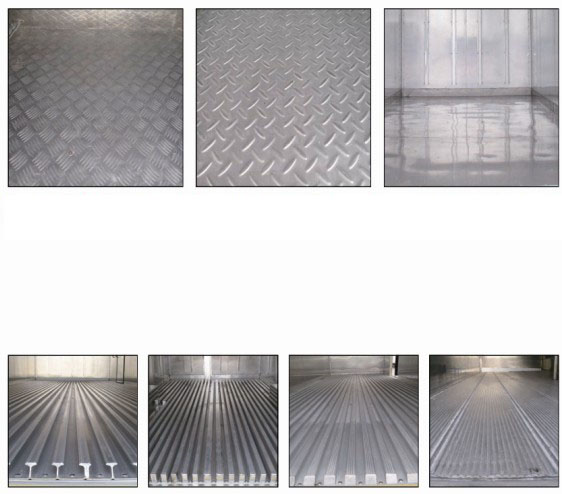

    5, non-slip aluminum alloy pattern plate
